CDU & Custom Manifolds, Engineer-to-Order
Send a drawing, get a DFM review within 48 hours, and hold one supplier from bar stock to tested assembly: bores DN03–DN10, UQD/UQDB port interfaces, and every batch leaving with helium and pressure records inside the carton.
From your drawing to a tested batch in six steps.
Each step states what we do and what we need from you — no silent hand-offs, no surprise gates.
Drawing intake
You send a PDF plus STEP/IGES with loop conditions: flow per branch, ΔP budget, coolant and temperature range. We confirm interface sizes and the port map in writing before anything is costed. Your part: the current-rev drawing and target quantities.
DFM review · 48 h
Within 48 hours you receive a written DFM report: bore sizing checked against your ΔP budget, wall thickness, seal choices and port interface verification. A 30-minute call walks through the markups. Your part: one call window with your hardware owner.
Prototype
First articles are machined on the same cells that will run the batch, then 100% pressure tested with results reported against the DFM notes. Your part: approve the sample, or mark it up and we cut again.
FAI / PPAP
A ballooned first-article inspection with CMM dimensions — PPAP-format documentation on request for OEM quality gates. Your part: your quality template, so the file lands in your system in your format.
Batch + 100% test
Production runs with per-batch helium / vacuum-decay and pressure records; cleanliness targets the ISO 4406 18/16/13 code. Your part: a release schedule so batches land with your integration calendar.
Ship FOB · CIF · DDP
Packed foam-in-box — individual coupling cartons of 10×10×5 cm at 0.2 kg, manifolds trayed — with the full document set enclosed. Your part: consignee details and preferred terms, quoted FOB, CIF or DDP.

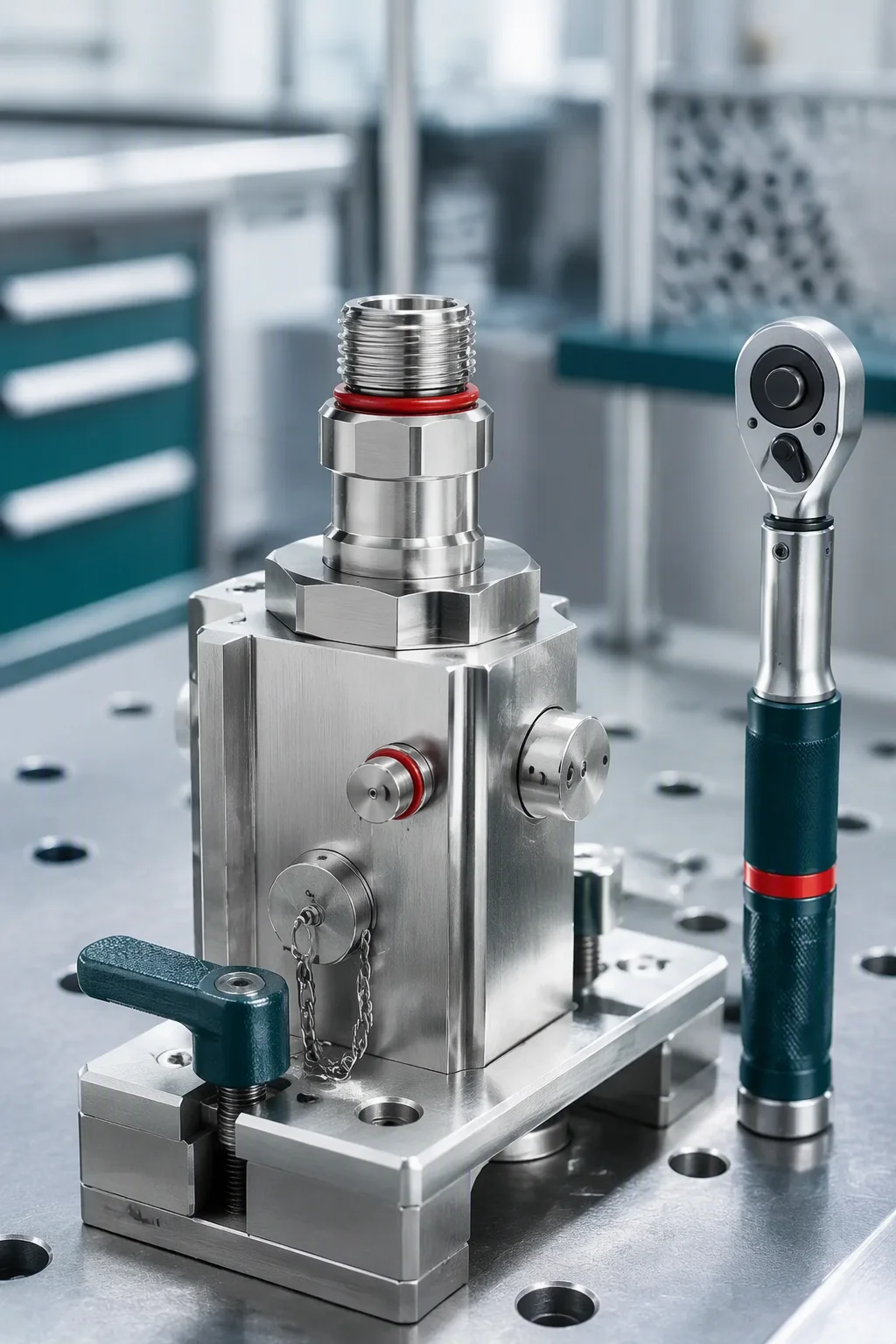

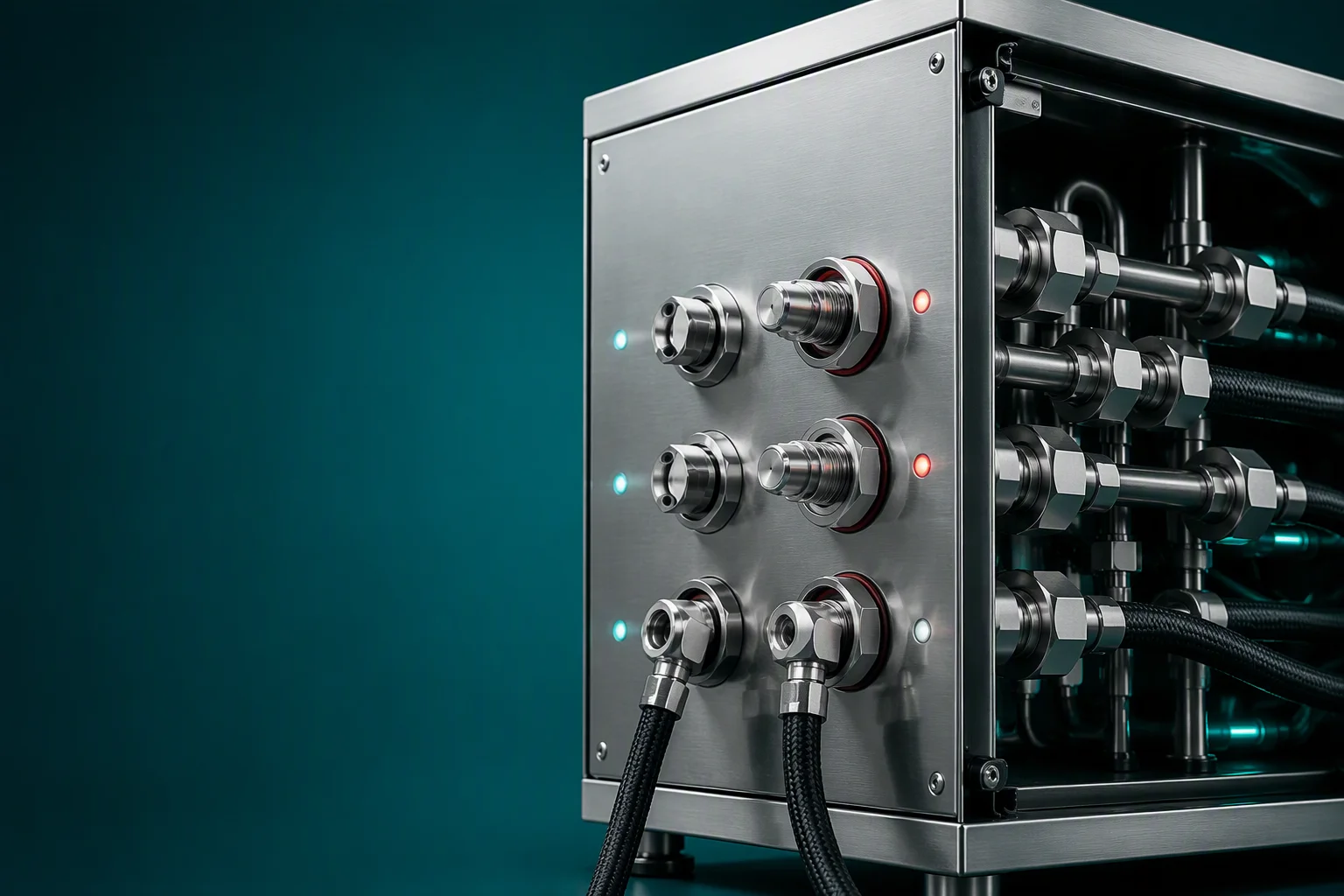

The manifold sits where the pressure budget is tightest.
In-rack CDUs span 15 to 125 kW of cooling, and measured high-density racks put about 56% of total pressure drop inside the server modules themselves. The manifold is the part you can still shape — every bore diameter chosen correctly and every elbow removed buys margin back for the pumps instead of starving the far trays.
- 15 – 125 kW — in-rack CDU range the manifold must follow
- ≈ 56% — share of rack ΔP consumed by server modules in measured racks
- DN03 – DN10 — bore range machined in-house
What engineer-to-order covers.
If your build sits outside a row, send it anyway — the DFM review is where exceptions get priced, not guessed.
| Parameter | Range / option |
|---|---|
| Bore range | DN03 – DN10 |
| Port count | per drawing; class full-rack systems 42–52 ports |
| Body materials | 316L stainless · brass · aluminum on request |
| Seals | EPDM (-40…+120 °C) · FKM (-15…+200 °C) · FVMQ (-55…+155 °C) |
| Working / burst pressure | up to 20 bar working · 80 bar burst (build class) |
| Coupling ports | UQD hand-push / UQDB blind-mate, native |
| End configurations | ORB per ISO 11926-3 · barbs 1/4"–5/8" hose |
| Coolants | water/glycol · DOWFROST LC 25 / JEFFCOOL ISF-25 class |
| Cleanliness target | ISO 4406 18/16/13 code |
| Testing | 100% helium / vacuum-decay + pressure per batch |
| Documents | DFM report · FAI · PPAP on request · material certs · test records |
| Quotation | 48 h from drawing or photos |
| Lead time | custom builds 30–45 days after approval; standard parts 15 days |
| Terms & MOQ | FOB · CIF · DDP · MOQ from 50 pieces |
What ships in the box, every order.
The document pack is part of the product — each line below is enclosed with the batch, not promised for later.
Order document pack
Custom manifold questions we answer daily.
What file formats do you accept for quoting?
Can you match an existing CDU port pattern?
How long from drawing approval to batch shipment?
Do you support OEM branding and NDAs?
Start with the 48-hour DFM review.
Attach the manifold drawing and loop conditions — quote, DFM notes and lead time come back within two business days, MOQ from 50 pieces.
