Rendering: a row of battery storage cabinets outdoors, coolant hoses running along their faces

cabinet & container loops

Cell spread is the KPI

Same couplings. A different acceptance test.

Start a cabinet loop review

Cell spread class · industry benchmark ≤4 °C container example

Cycle life, same example · industry benchmark 6,000+ cycles

Market to 2033 · industry-published benchmark ~21.6% CAGR

What a 5 °C spread costs

Spread · penalty · working window

Cell to cell 5 °C spread across a pack

Enough of a spread to matter on its own. industry benchmark

Pack penalty 10–15% performance lost

Performance lost at that spread, before any humidity or ageing effect. industry benchmark

Working window 15–35 °C ideal band

The band the thermal design is trying to hold the cells inside. industry benchmark

Uniformity is the acceptance KPI, not pressure and not flow.

What a liquid-cooled design can hold

Benchmark values · branch mechanism

Cell spread

A 6.25 MWh liquid-cooled container example is documented at or below a 4 °C cell spread. industry benchmark

Cycle life

6,000+ cycles in the same published example: the number the spread is bought with. industry benchmark

Mechanism

Balanced branches. An unbalanced branch is what a spread looks like before anyone measures it, which is why balancing is verified at commissioning rather than assumed at design.

A market that is still climbing

Fixed BESS liquid cooling · 2023–24 to 2033

Today $3.5–4.2B fixed storage liquid cooling

The 2023–24 band reported for this segment. industry-published benchmark

2033 $24.51B forecast · CAGR ~21.6%

The forecast for the same segment. industry-published benchmark

Design-ins now lock multi-year supply. The agreements behind that curve are pipeline-sized, and they are placed before the first cabinet ships.

Where uniformity is decided: the branch

Supply · return · cabinet isolation

Manifolds

Distribution and collection sized so the branches stay equal: the parts that decide whether the spread is a design number or a commissioning surprise.

Service couplings

Dry-break maintenance couplings: a cabinet is isolated at its own loop, without draining the hall. Dry-break selection and the loop chemistry follow the test discipline on the quality page.

Default route

Liquid cooling is the default thermal route for new storage builds, on 2025 industry reporting. industry-published benchmark

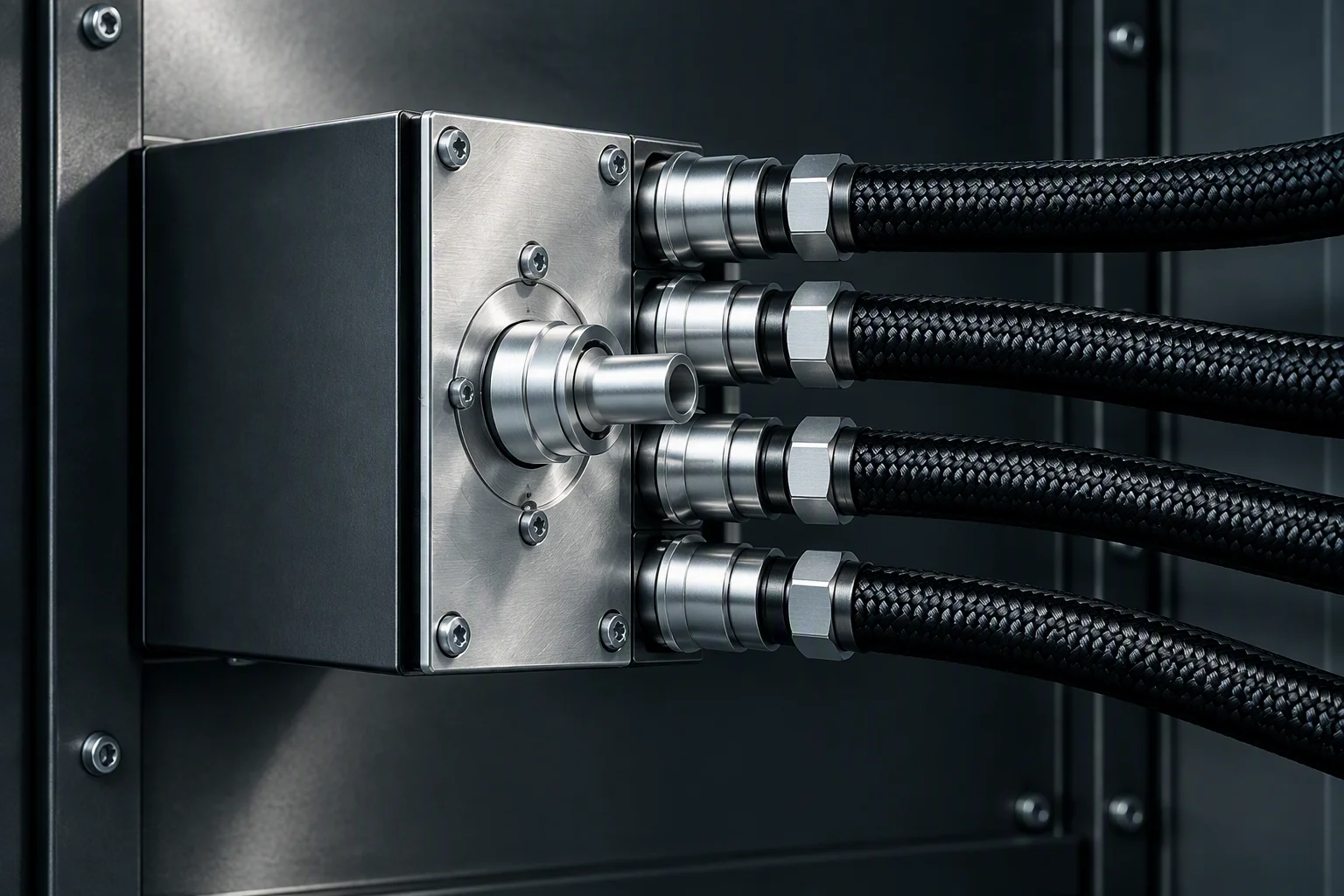

Rendering: a coolant manifold with four ports inside a sheet-steel battery cabinet, hoses running to each port — Inside the cabinetone manifold, four branches

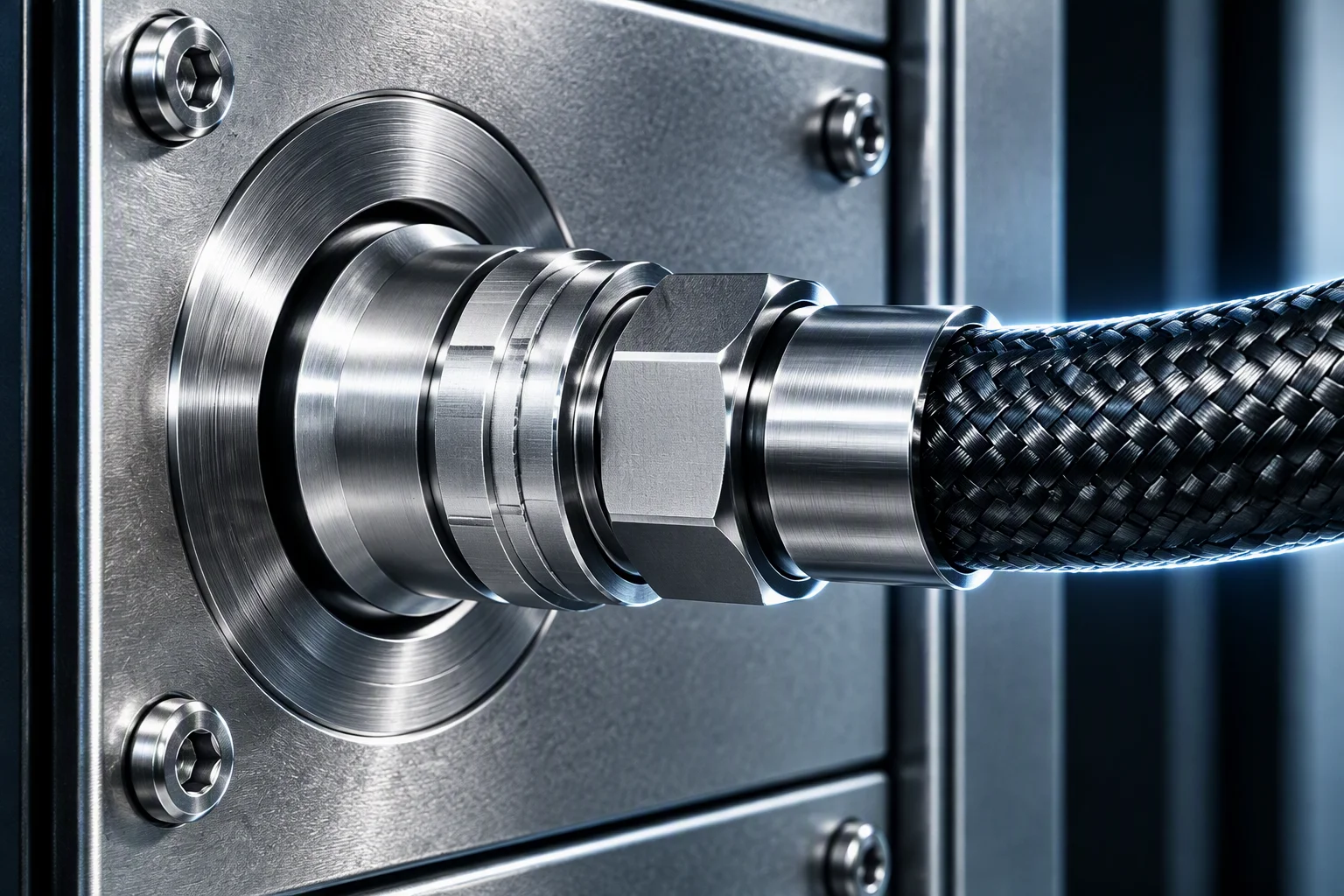

Rendering: a macro of the coolant port on a battery cabinet face, the coupling collar turned to camera — Cabinet facethe port a service swap touches

The discipline behind it, and the parts it shares

Cleanliness · acceptance KPI · spares

Cleanliness The cleaning and leak-test gates are the ones the data centre line runs: the same gates, not a lighter set for a different industry.

Acceptance KPI The spread is the acceptance number. Pressure and flow are design inputs; they are not what the customer signs off.

Spares Shared part numbers across the two industries, so a site keeps one spares list instead of two. The same parts serve the data centre route.

Rendering: four blind-mate coupling pairs in ascending size, natural stainless, on a dark grey ground

One blind-mate family, four pairs in ascending size: the same couplings specified on rack-side work, held here against a cabinet-sized loop. Sizes and terminations are on the blind-mate page and the UQD page.

Rendering: a tray slid fully home, its blind-mate plugs seated in the manifold sockets behind it — Same parts, both routestray home, plugs seated

Rendering: five UQD-series couplings with red and cyan anodised rings and chrome bodies on a neutral grey gradient ground — One spares listcolour-marked, five sizes

Cabinet and container loops are built as a BOM against the drawings you already have. The project support page covers how that is staged. For branch-balanced headers, start with the horizontal manifold page.

Cabinet loop review

What is your cabinet loop drawing at?

Send the cabinet or container loop drawing and the spread you have to hold. The reply is a coupling and manifold list for it, against a segment moving at a ~21.6% CAGR to 2033 (industry-published benchmark).

Start a cabinet loop review One business day · English quote + a one-page spec sheet

Input cabinet drawings

Output loop BOM

Attachment coupling + manifold list

Request the cabinet loop pack
