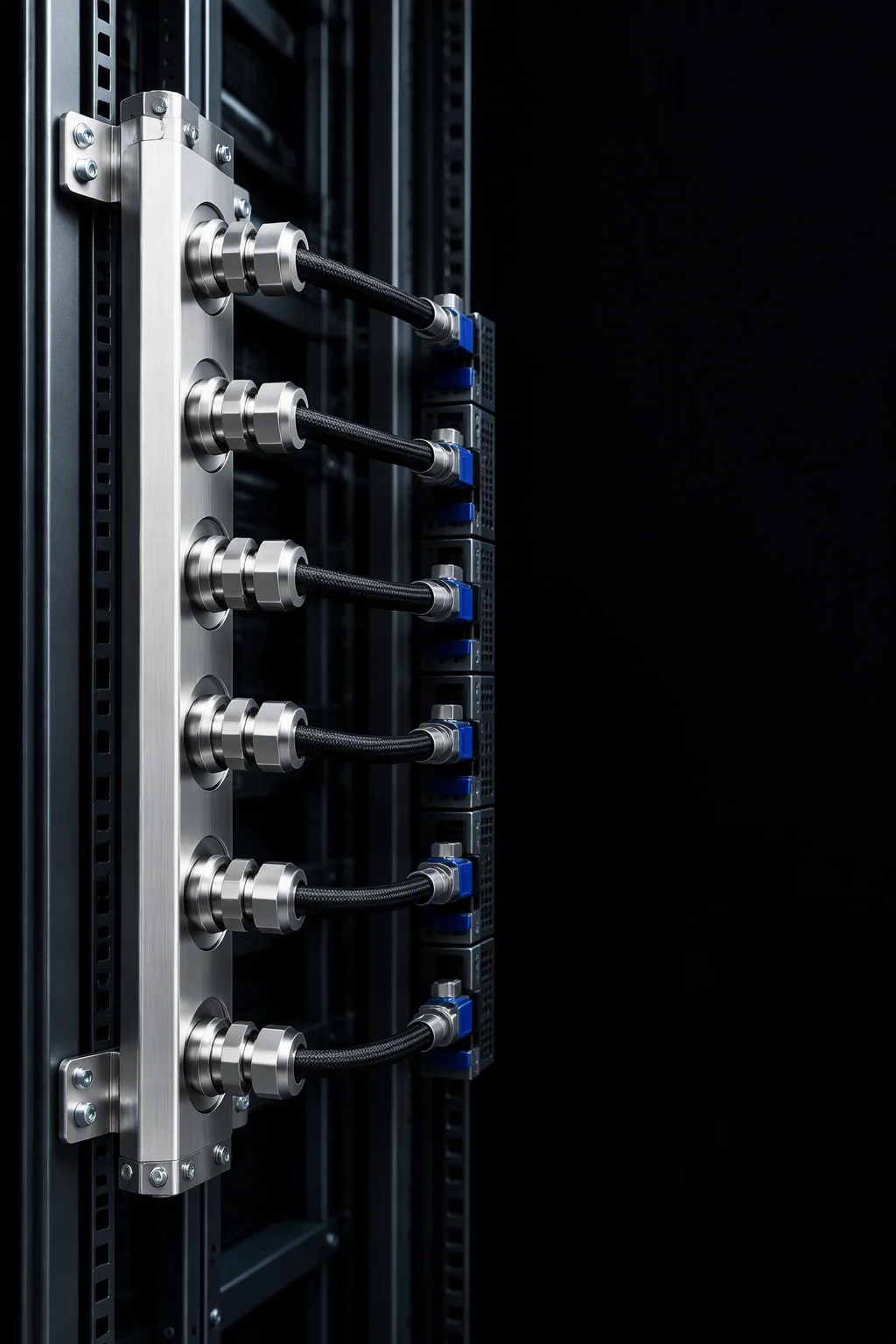

A full-height vertical manifold standing against a rear rack post, ports in one column
Vertical 0U · rear of rack · full height

Vertical 0U rack manifolds

One manifold at the rear of the rack, as tall as the rack, with the port row running down the column beside it.

Request a height match
Rack range
42U–52U
U space used
0U
Leak tested
100%

Height series and pressure band: industry practice · leak test scope: industry practice

Which height for your rack

Three height series · one pressure band · industry practice

42U 1800–1900 mm industry practice
48U ≈2100 mm industry practice
52U >2400 mm industry practice
Operating band 87–145 psi industry practice
Port pitch Per rack std. follows the EIA or ORv3 rack standard
Request the height series sheet

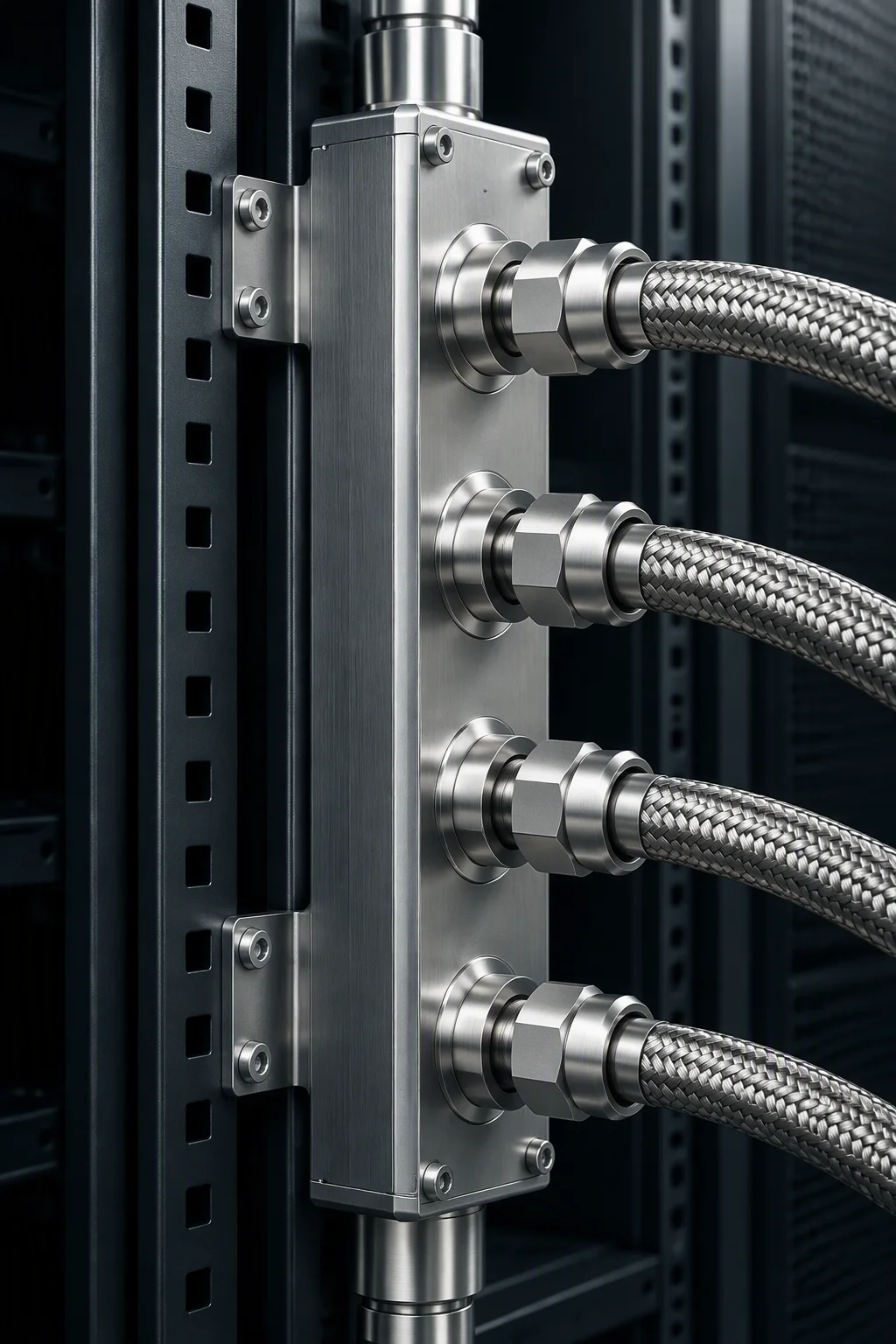

A vertical manifold standing beside a rack frame, showing the height it has to match

One tick per rack unit

42U · 1800–1900 mm

48U · about 2100 mm

52U · over 2400 mm

How many servers one column serves

Port count arithmetic · industry practice

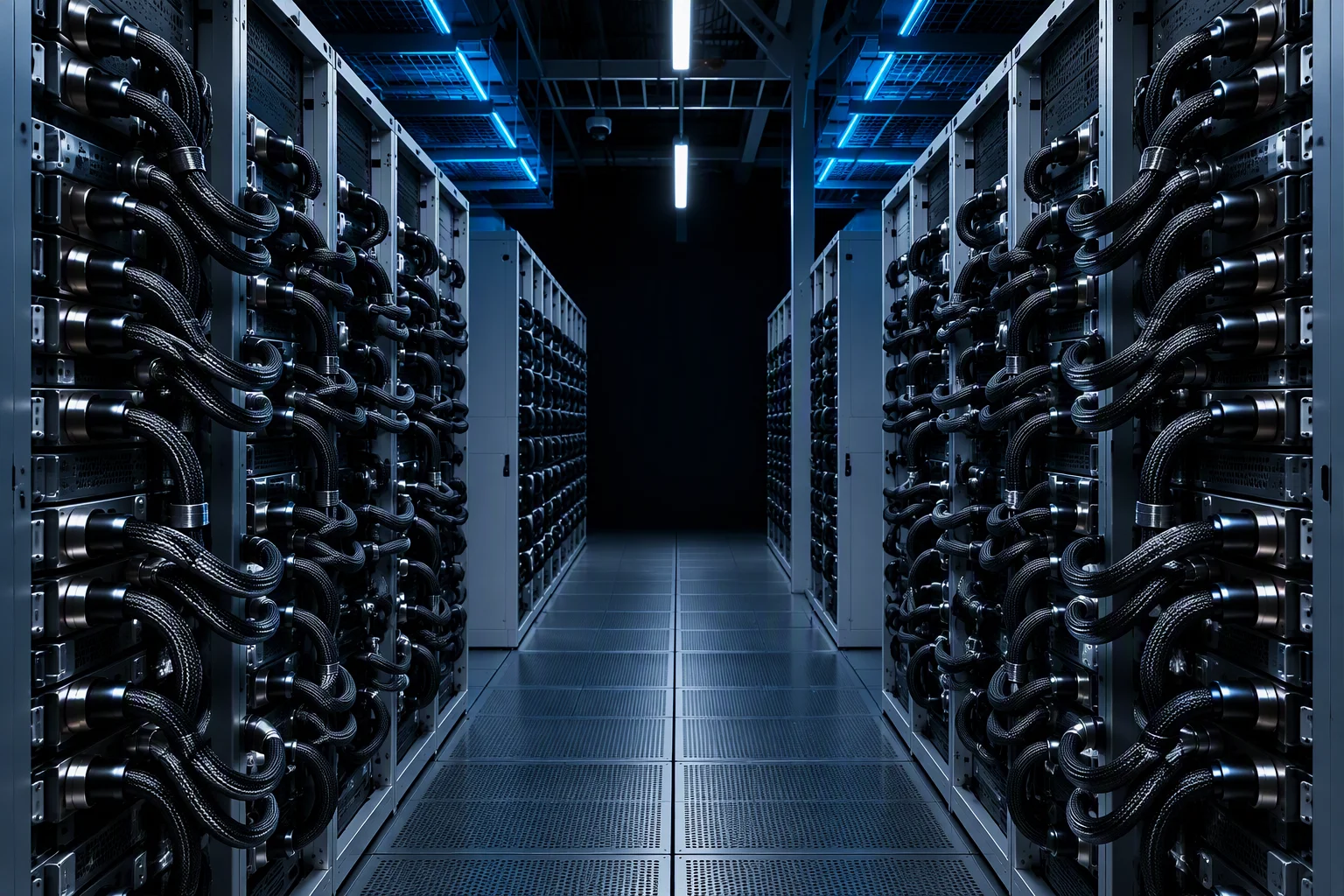

A rear aisle with manifold ports feeding hoses into server nodes
Servers per column
100+
Port pitch
Server U height
High port counts
Two-sided

In the industry a single column reaches 100+ servers, with the port pitch following the server U height rather than a fixed spacing. Above a certain count the ports go on both faces of the column.

Discussed: 100+ servers per column · pitch on server U height · two-sided option · rear aisle service

Test gate before it ships

Per-unit leak test · every quick disconnect port

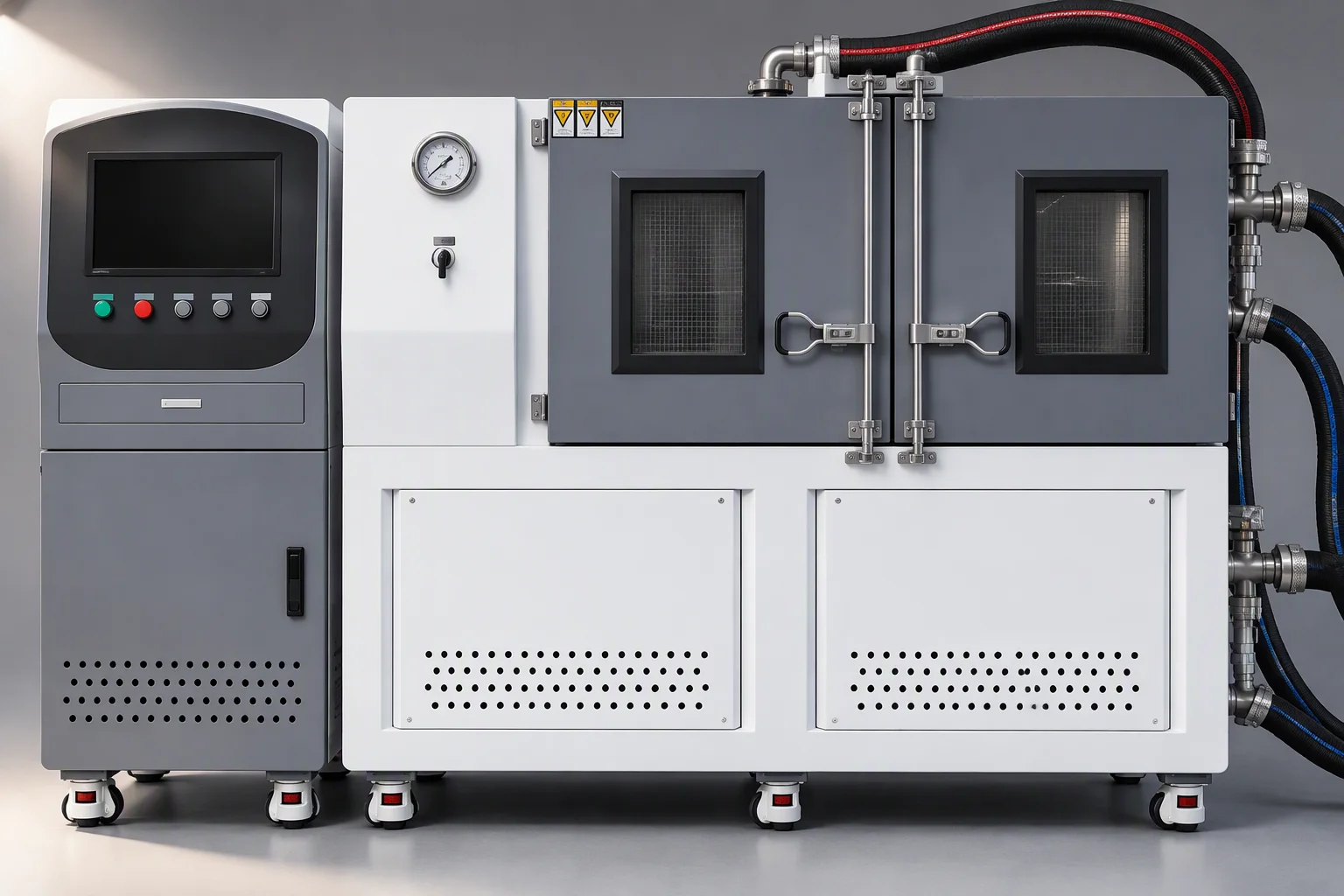

A test bench unit with its chamber closed and hoses running to the fixture
Tested 100% every manifold, including each quick disconnect port
Conditions Static + dynamic both conditions, industry practice
Record Per serial a test certificate per serial number
In market UL / PG25 manifold lines in the market carry a UL declaration and PG25 validation · in-market
Shipping Capped every port plugged for transit

The leak test routine is what the industry does per unit. The UL declaration and the PG25 validation are things that exist on manifold lines in the market; neither is a mark held by DryLink.

Static · pressure held on the assembly

Dynamic · assembly under cycling condition

Pressure direction marked

The other two families

Pick by where the service aisle is

A horizontal manifold spanning the front beam of a rack frame HorizontalFront of rack, for racks served from the front aisle. An ORv3 rack front showing a port row on 48 mm pitch ORv348 mm pitch, blind-mate docking, no hand on the coupling.

Mount and service

Installed states · three families compared

A full-height vertical manifold bolted to a rear rack post with hoses fanning out to trays
Installed at the rearBolted to the post, hoses fanned to the trays.
A gloved hand reaching a mid port on a vertical manifold
Service reachA mid port reached without moving the column.

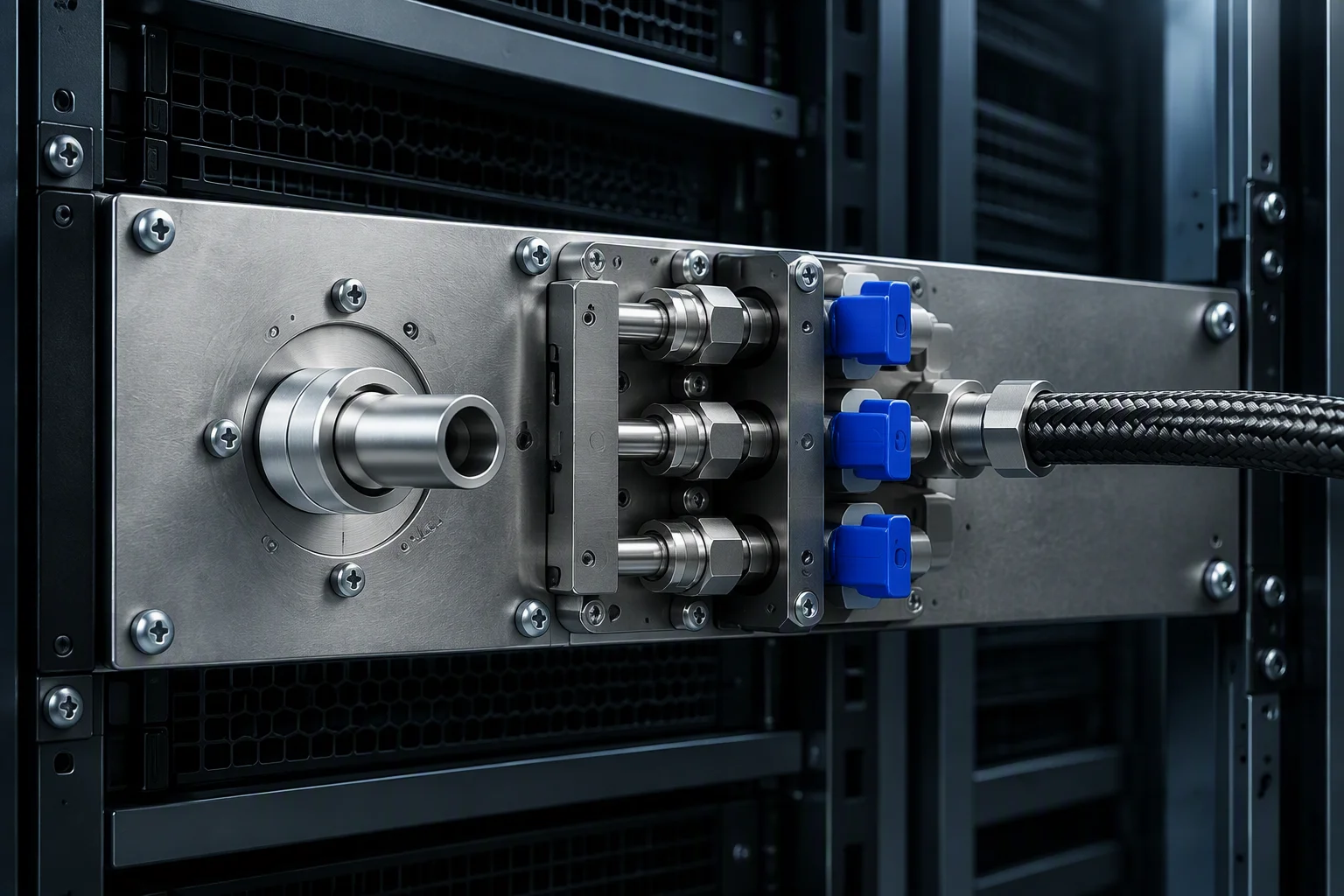

A rack front with a manifold on the front mount position
For contrastThe same rack with the manifold at the front instead.
A rack-side panel with a machined coupling spigot, blue latch levers beside it and a black hose running out of frame
Rack endWhere the column meets the rack panel.
A full-height vertical manifold standing against a rear rack post
Vertical 0UThis family, side-on.

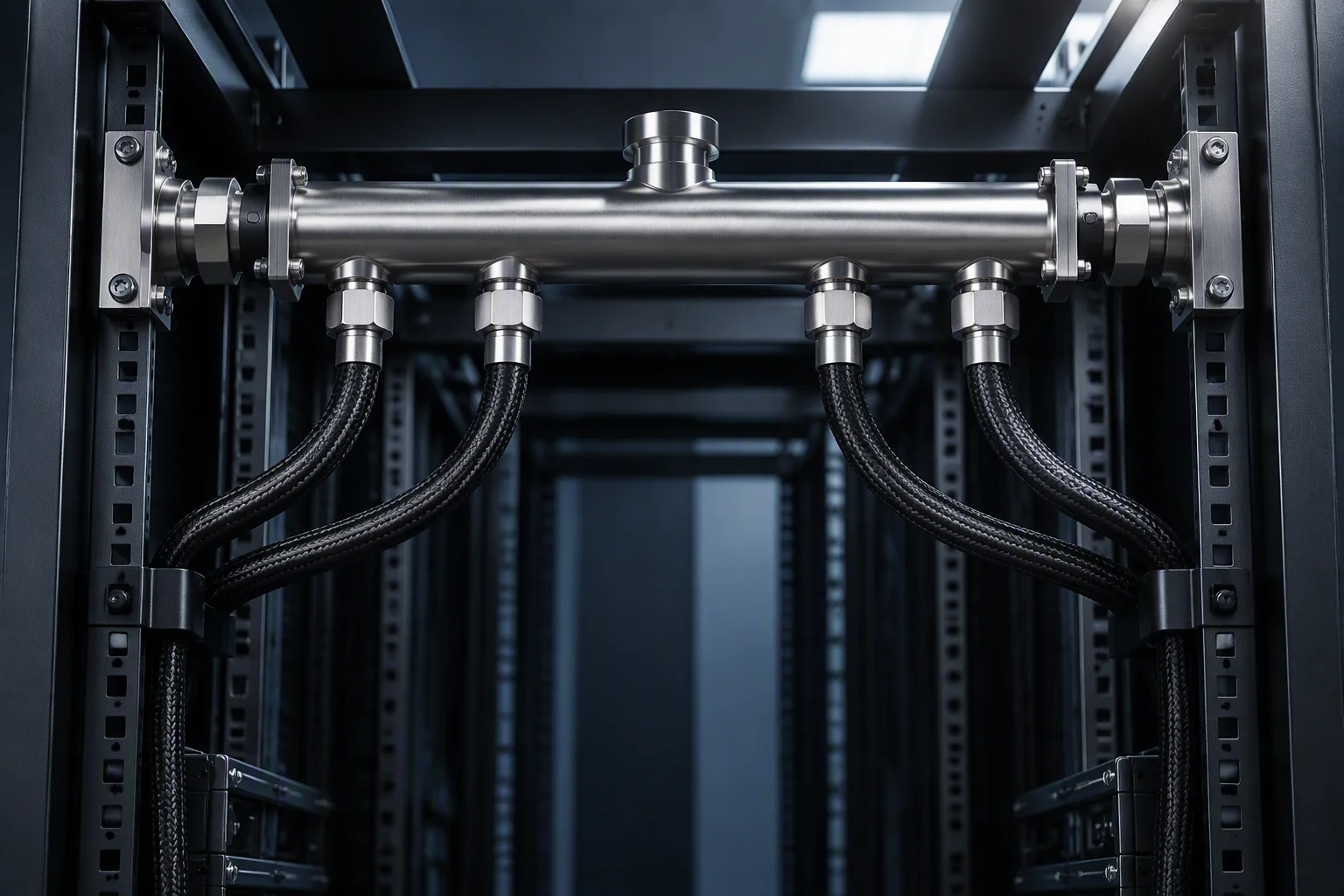

A horizontal manifold spanning the front beam of a rack frame
HorizontalFront of rack, configurable length.
An ORv3 rack front showing a port row on 48 mm pitch
ORv348 mm pitch, blind-mate.
Four blind-mate coupling pairs in bare stainless arranged in ascending order
Port partsWhat the column's ports mate with.
Height match

How tall is the rack?

Send the rack U count, the port count and whether the feed arrives from the top or the bottom. A 42U rack lands between 1800 and 1900 mm; 48U lands near 2100 mm.

Request a height match

One business day · English quote + one-page spec sheet · designed to the OCP UQD specification
